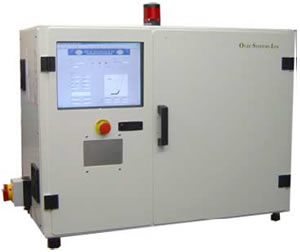

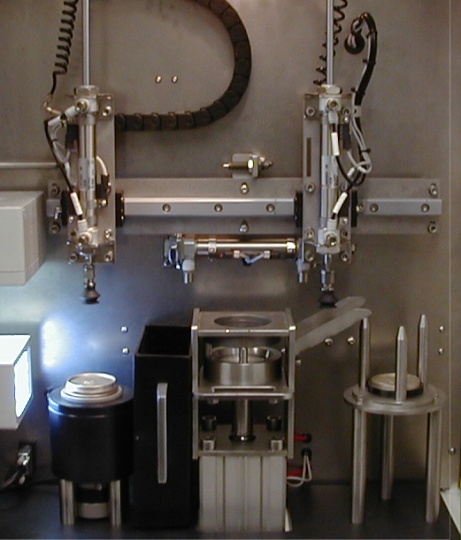

CPG200 – Compound Placement Gauge
Ovec's CPG200 Compound Placement Gauge is designed for Easy-Open and Full Opening Ends, testing up to 200 ends per hour and measuring compound placement to an accuracy of 0.1 mm. Placement is measured at up to 32 points around the circumference, providing data which is not dependent on operator skill. Automatic – Repeatable – Accurate.
Quick change parts are available for most Shell/End sizes and the gauge provides industry standard results both locally and via Ethernet network output. The new integrated curl opening function allows formed shells/ends to be loaded for testing with limited preparation required.
- Suits all standard end sizes – Easy-Open and Full Opening Ends
- Quick change parts for most end sizes
- New integrated curl opening function – limited end preparation required
- No operator judgment required
- Storage of preset test data
- Accuracy to 0.1 mm
- Tests up to 200 ends per hour
- Up to 32 measurements around the circumference
- Operator selectable number of guns
- Operator selectable samples per gun
- Measures cut edge and HOS
- Automatic calibration check
- Automatic reject log and collection

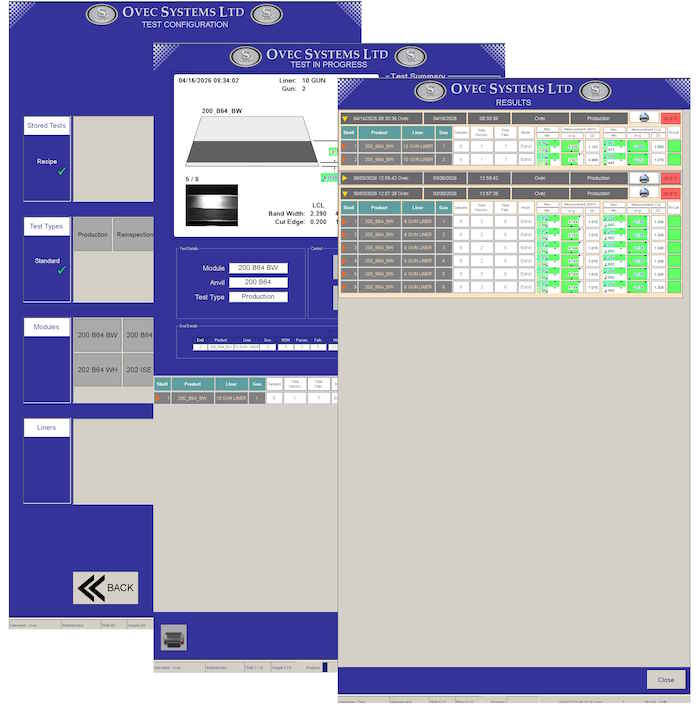

- Local display and printout of results
- Automatic Ethernet data logging
- Easy maintenance and excellent serviceability
- Industry standard Allen Bradley or Siemens PLC control
- Small footprint required, allowing the system to fit neatly into any quality lab

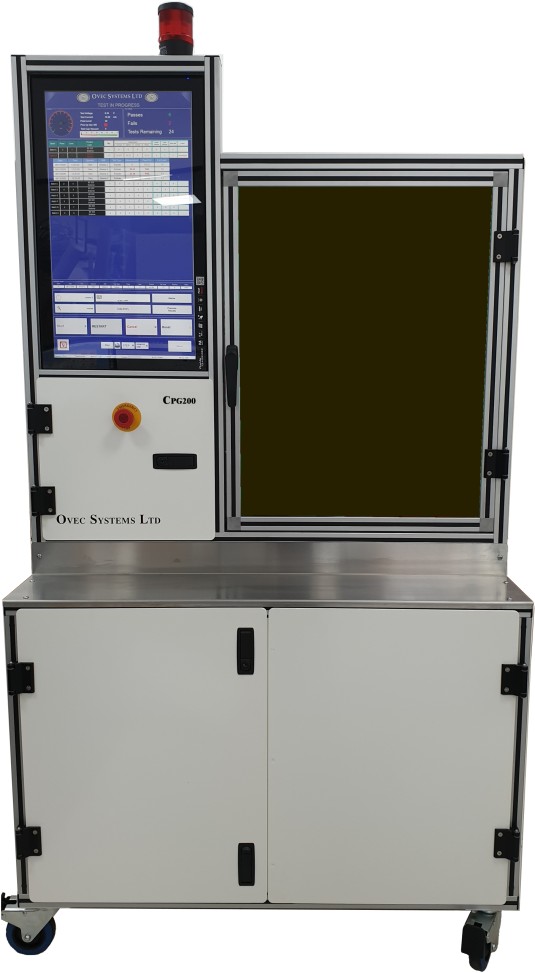

- Available with lockable trolley, allowing all change parts etc to be kept with the system
| Capacity | |
|---|---|
| Test rate | Up to 200 ends per hour |
| Number of guns | Operator selectable |
| Samples per gun | Operator selectable |
| Measurements | Up to 32 around the circumference |
| End size | All standard end sizes |
| Services Required | |
| Power | 110–230v, 5 amps, 50/60Hz, Single phase |
| Compressed Air | Dry Air @ 5–6 Bar |
| Dimensions | |
| Overall | 102cm(L) x 72cm(W) x 190cm(H) – Floor Standing |
